C Type High Speed Hydraulic Press

C Type High Speed Hydraulic Press is developed for fast, controlled, and efficient pressing operations in mass production processes with high approach and return speeds. Its C-type body structure provides easy access to the working area, while the controlled power of the hydraulic system allows for precise and repeatable production.

Reha Makina C Type High Speed Hydraulic Press series is offered with different capacity options from 30 tons to 300 tons. With different table sizes, stroke distances, and working speeds, it provides solutions suitable for various production needs in metal forming, pressing, molding, and mass production applications.

Technical Specifications

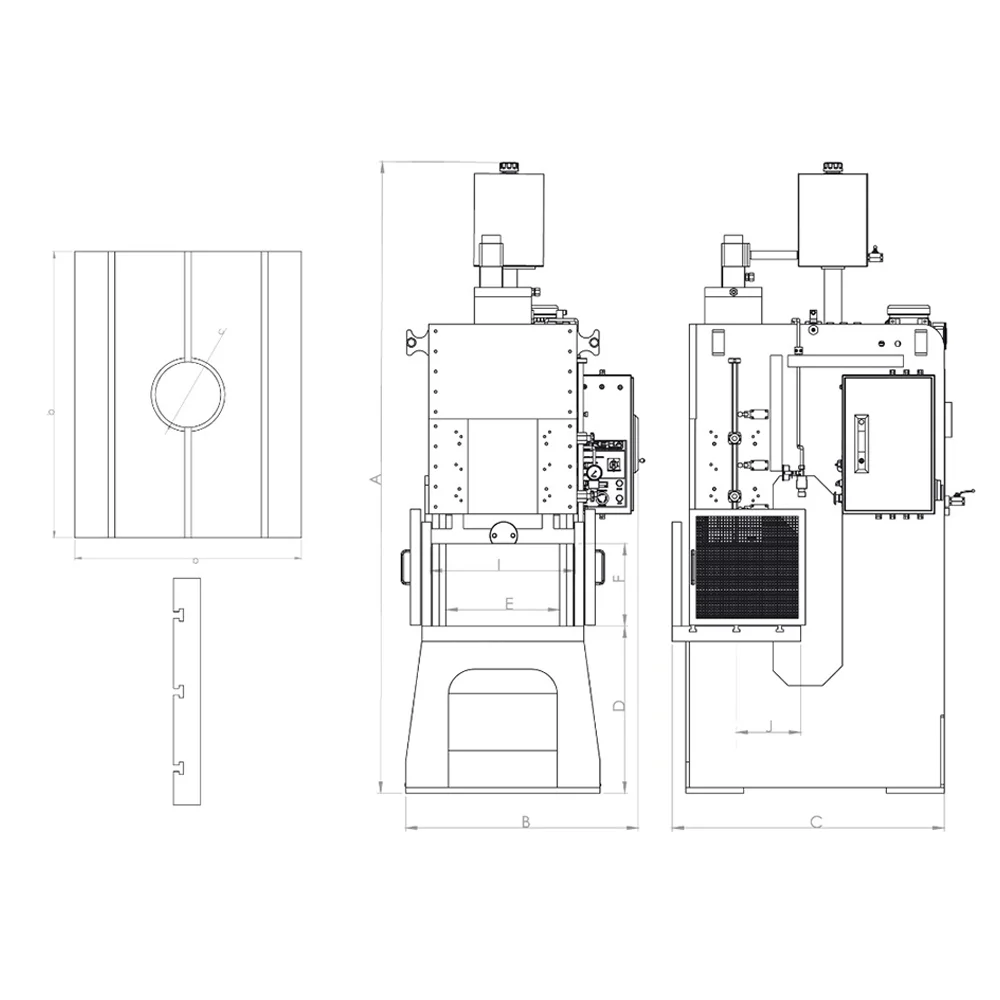

Technical Specifications	Symbol	Unit	RHCP 30180	RHCP 40200	RHCP 60200	RHCP 80 250	RHCP 100250	RHCP 125275	RHCP 150300	RHCP 200325	RHCP 250350	RHCP 300350
Capacity		Ton	30	40	60	80	100	125	150	200	250	300
Stroke		mm	0 - 180	0 - 200	0 - 220	0 - 250	0 - 250	0 - 275	0 - 300	0 - 325	0 - 350	0 - 350
Table Dimensions	a x b	mm	450 x 550	460 x 580	550 x 700	600 x 740	600 x 800	600 x 820	640 x 930	660 x 950	660 x 980	700 x 1050
Max. Distance Between Table and Ram	F	mm	300	330	350	380	400	425	450	500	550	600
Ram Table Dimensions	I	mm	460 x 150	500 x 195	625 x 240	625 x 250	750 x 300	750 x 320	770 x 340	800 x 360	850 x 380	900 x 400
Distance Between Two Bodies	E	mm	400	450	550	550	550	600	630	650	675	700
Throat Depth	J	mm	225	230	275	300	325	325	350	360	370	380
Table Hole Diameter		mm	120	150	160	190	200	220	240	250	260	270
Downward Speed		mm/sn	330	330	280	280	270	270	260	240	240	240
Pressing Speed		mm/sn	26	26	24	23	22	20	20	18	18	16
Return Speed		mm/sn	240	240	235	235	230	230	220	220	220	220
Press Width	B	mm	840	880	1000	1050	1070	1100	1200	1300	1450	1600
Press Height	A	mm	2300	2400	2600	2900	3250	3250	3500	3700	3950	4250
Press Depth	C	mm	1130	1150	1200	1300	1500	1650	1800	2100	2250	2350
Press Weight		Kg	1180	1500	2450	3000	4000	5200	6700	12000	14250	16100
Motor Power		kW	5,5	7,5	11	11	16	16	18	22	22	29
Motor Speed		rpm	1450	1450	1450	1450	1450	1450	1450	1450	1450	1450
