H Type Hydraulic Drawing Press

H Type Hydraulic Drawing Press is a powerful hydraulic press solution developed for deep drawing and heavy metal forming applications requiring high press force. Thanks to its rigid H-type body structure, wide working area, and cushion pressure system, it allows the controlled and precise shaping of large parts.

Reha Makina H Type Hydraulic Drawing Press series is offered with press capacity from 100 tons to 1,200 tons and cushion capacity from 40 tons to 480 tons options. With wide table sizes, long stroke distances, and different working speeds, it offers solutions suitable for heavy industry, deep drawing, and metal forming applications.

Technical Specifications

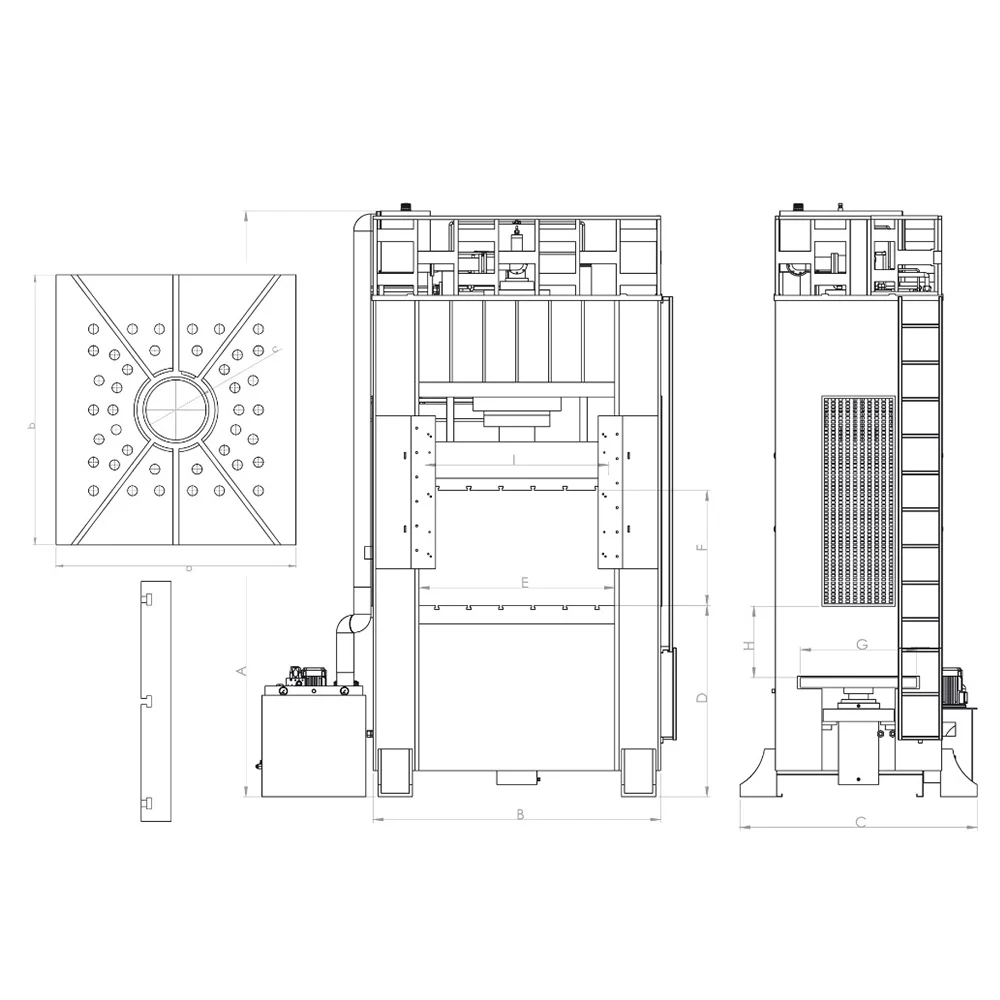

Technical Specifications	Symbol	Unit	RHHSP 100600	RHHSP 150650	RHHSP 200700	RHHSP 300800	RHHSP 400800	RHHSP 5001000	RHHSP 6001000	RHHSP 8001000	RHHSP 10001000	RHHSP 12001000
Capacity		Ton	100	150	200	300	400	500	600	800	1000	1200
Cushion Capacity		Ton	40	60	80	120	160	200	240	320	400	480
Stroke		mm	0 - 600	0 - 650	0 - 700	0 - 800	0 - 800	0 - 1000	0 - 1000	0 - 1000	0 - 1000	0 - 1000
Cushion Strokee	H	mm	0 - 350	0 - 375	0 - 400	0 - 450	0 - 450	0 - 550	0 - 550	0 - 550	0 - 550	0 - 550
Table Dimensions	a x b	mm	800 x 1000	800 x 1000	850 x 1100	900 x 1200	1000 x 1250	1200 x 1500	1300 x 1600	1400 x 1700	1500 x 2000	1500 x 2000
Max. Distance Between Table and Ram	F	mm	750	800	850	950	950	1150	1150	1150	1150	1150
Ram Table Dimensions	I	mm	700 x 900	700 x 900	750 x 1000	800 x 1100	900 x 1150	1100 x 1400	1200 x 1500	1300 x 1600	1400 x 1900	1400 x 1900
Distance Between Two Bodies	E	mm	1050	1050	1150	1250	1300	1550	1650	1750	2050	2050
Downward Speed		mm/sn	200	200	200	200	200	200	200	200	200	200
Pressing Speed		mm/sn	20	20	20	18	16	16	12	12	10	10
Return Speed		mm/sn	220	220	200	200	180	180	150	150	130	130
Press Width	B	mm	1750	880	1000	1050	1070	1100	1200	1300	1450	1600
Press Height	A	mm	4600	2400	2600	2900	3250	3250	3500	3700	3950	4250
Press Depth	C	mm	1400	1150	1200	1300	1500	1650	1800	2100	2250	2350
Press Weight		Kg	9750	12750	16250	18500	20000	25850	27900	32150	38000	47000
Motor Power		kW	11	15	15	22	22	22	30	40	40	45
Motor Speed		rpm	1450	1450	1450	1450	1450	1450	1450	1450	1450	1450
